Evolution of Statistical Software and Quantitative Methods

Brandon LeBeau

2018-07-31

Rationale

  • Extension of work done by Robert Muenchen (http://r4stats.com/articles/popularity/).
    • Focus is on statistical software
    • Addition of quantitative methods
    • Particularly interested in the interaction.
  • Questions of Interest:
    • Exploring which software is popular in published research.
    • How many empirical analyses cite software?
    • Any patterns in software use with quantitative methods?

Methods

  • Research synthesis methods were used
  • Web of Knowledge was used to pull in citations for 12 social science journals
    • 1995 to 2018
  • EndNote’s “Find Text” feature was used to pull in PDFs of all articles from the journals
  • pdfsearch R package was used to perform keyword searching.

Software Keywords

Keyword Group Keywords
AMOS AMOS
IRT BILOG; BILOG-MG; IRT PRO; MULTILOG; PARSCALE
R CRAN; R-project; R Project; R Core Team; R software; RStudio
HLM HLM [0-9]; HLM[0-9]
Java Java
SAS SAS; SAS Institute; JMP
LISREL LISREL
Mplus Mplus; M-Plus
Python Python
SPSS SPSS; SPSS Statistics
STATA STATA
Other Matlab; Scala; Systat; Statistica; Tableau; Minitab

Method Keywords

Keyword Group Keywords
ANOVA Analysis of Variance; ANOVA; Analysis of Covariance; ANCOVA; MANOVA; Multivariate Analysis of Variance; Repeated Measures Analysis of Variance; RM-ANOVA
IRT IRT; Item Response Theory
CFA CFA; Confirmatory Factor Analysis
Chi-Square Chi-square( analysis)?; Nonparametric Analysis
Cluster Analysis Cluster Analysis; Hierarchical Cluster Analysis
t-test Dependent Samples t-test; one-sample t-test; two-sample t-test
EFA EFA; Exploratory Factor Analysis
GAM GAM; Generalized additive models

Method Keywords Continued

Keyword Group Keywords
Linear Mixed Model LMM; HLM; Multilevel Model; Multi-level Model; Hierarchical Linear Model; General(ized)? Linear Mixed Model
Linear Model Linear Regression; Multiple Linear Regression; Multiple Regression; General(ized)? Linear Model
Growth Growth Model; Latent Growth Model; LGM
SEM Latent Variable Modeling; SEM; Structural Equation Modeling
Logistic Regression Logistic Regression; Multinomial Regression; Multinomial Logistic Regression; Ordinal Regression
meta-analysis meta-analysis; meta analysis
Non-Linear Regression Non-Linear Regression; Nonlinear Regression
Propensity Score Propensity Score Analysis; Propensity score matching

Journals and Number of Articles

plot of chunk num_journals

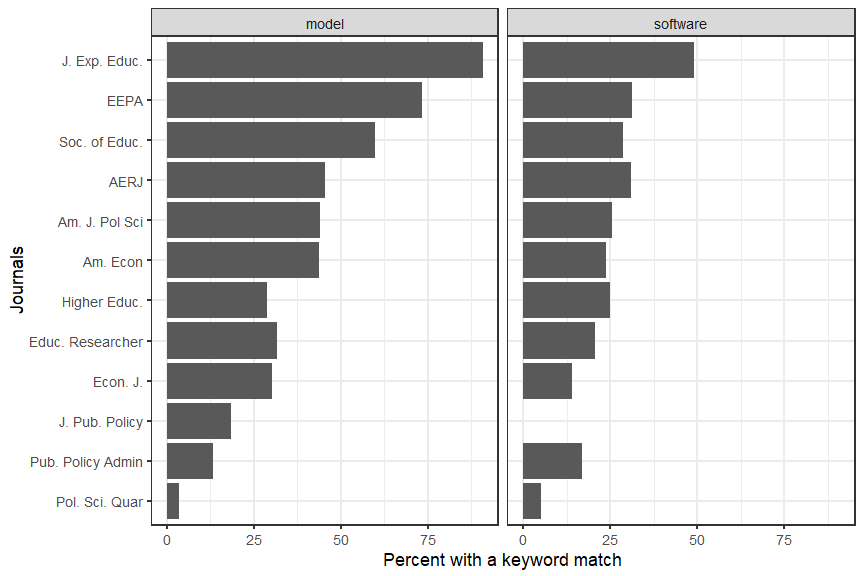

Articles with at least one match

plot of chunk output

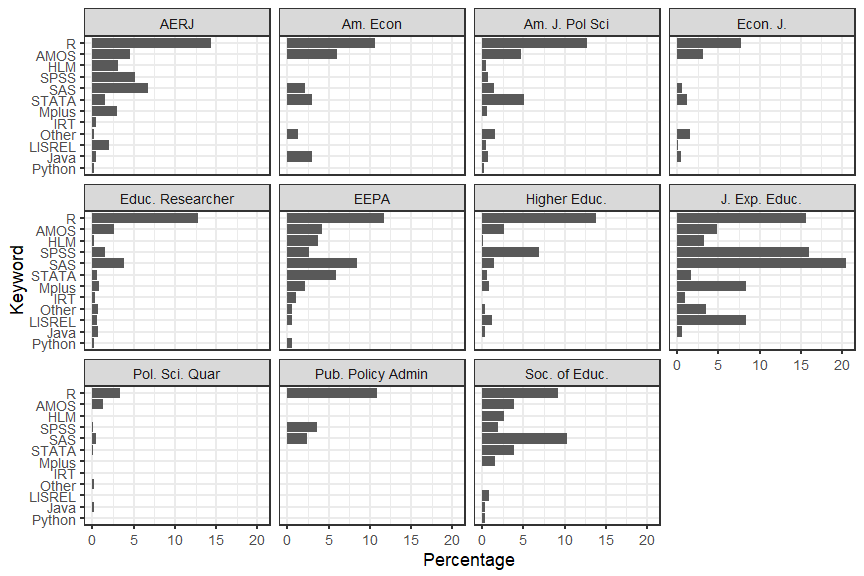

Software Keywords

plot of chunk software_keywords

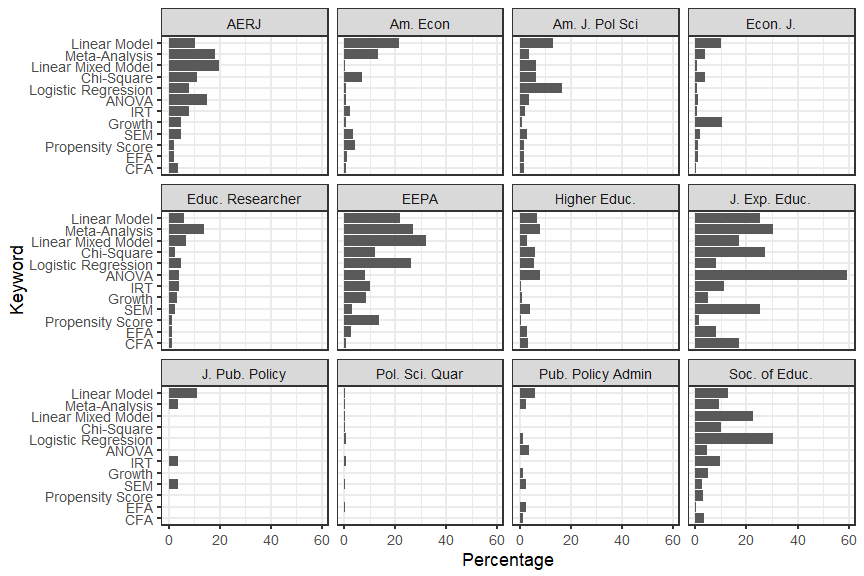

Method Keywords

plot of chunk model_keywords

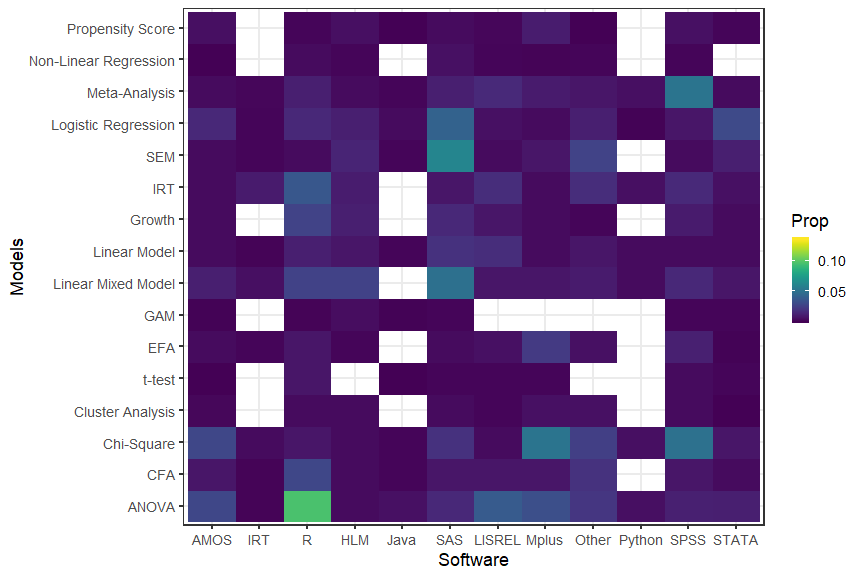

Software and Methods

plot of chunk output3

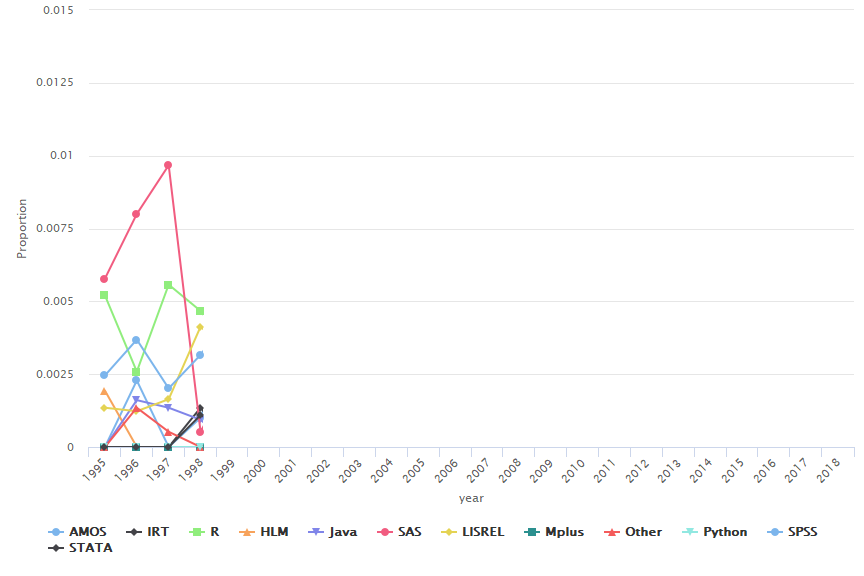

Software over Time

plot of chunk software_time

Model over Time

plot of chunk model_time
