Simulation and Power Analysis of Generalized Linear Mixed Models

Brandon LeBeau

2017-08-02

Overview

  1. Power
  2. simglm package
  3. Shiny Demo

Power

  • Power is the ability to statistically detect a true effect (i.e. non-zero population effect).
  • For simple models (e.g. t-tests, regression) there are closed form equations for generating power.
    • R has routines for these: power.t.test, power.anova.test
    • Gpower3

Power Example

n <- seq(20, 1000, 5)
power <- sapply(seq_along(n), function(i)
  power.t.test(n = n[i], delta = .15, sd = 1, type = 'two.sample')$power)

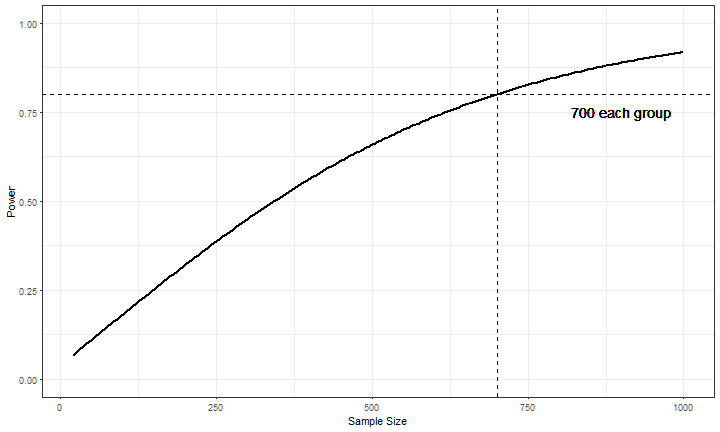

plot of chunk visualize

Power for (G)LMM

  • Power for more complex models is not as straightforward;
    • particularly with messy real world data.
  • There is software for GLMM models to generate power

Power is hard

  • In practice, power is hard.
  • Need to make many assumptions on data that has not been collected.
    • Therefore, data assumptions made for power computations will likely differ from collected sample.
  • A power analysis needs to be flexible, exploratory, and well thought out.

Why do power?

  • Three common reasons to do power analysis:
    1. Power evidence for grant/planning
    2. Post Hoc to explore insignificant results
    3. Monte Carlo studies

simglm Features

  • Longitudinal data simulation
  • Three levels of nesting
  • Specification of distribution of random components (random effects and random error)
  • Specification of serial correlation
  • Specification of the number of variables
    • Ability to add time-varying covariates
    • Specify the mean and variance of fixed covariate variables
    • Factor variable simulation
    • Ordinal variable simulation

simglm Features Continued

  • Power by simulation
    • Vary parameters for a factorial simulation design.
    • Can vary model fitted to the data to misspecify directly.
  • Simulation of missing data
  • Include other distributions for covariate simulation.
  • Continuous, Logistic (dichotomous), and Poisson (count) outcome variables.

Replicate with simglm

  • Note this code uses the development version on GitHub
library(simglm)
fixed <- ~ 1 + trt_f
fixed_param <- c(0, 0.15)
fact_vars <- list(numlevels = 2, var_type = 'single',
                  opts = list(list(replace = TRUE)))
n <- NULL
error_var <- 1
with_err_gen <- 'rnorm'
pow_param <- c('(Intercept)', 'I(trt_f - 1)')
alpha <- .05
pow_dist <- "t"
pow_tail <- 2
replicates <- 500
terms_vary <- list(n = seq(20, 2000, 40))
power_out <- sim_pow(fixed = fixed, fixed_param = fixed_param, cov_param = NULL,
                     n = n, error_var = error_var, with_err_gen = with_err_gen,
                     fact_vars = fact_vars,
                     data_str = "single", pow_param = pow_param, alpha = alpha,
                     pow_dist = pow_dist, pow_tail = pow_tail,
                     replicates = replicates, terms_vary = terms_vary,
                     raw_power = FALSE, lm_fit_mod = sim_data ~ I(trt_f - 1))

Plot Results

plot of chunk power_out_figure

More Realistic?

terms_vary <- list(n = seq(20, 2000, 40),
                   fact_vars = list(list(numlevels = 2, var_type = 'single',
                                      opts = list(list(replace = TRUE))),
                                    list(numlevels = 2, var_type = 'single',
                                      opts = list(list(replace = TRUE,
                                                       prob = c(.7, .3))))))
pow_param <- c('I(trt_f - 1)')
power_out <- sim_pow(fixed = fixed, fixed_param = fixed_param, cov_param = NULL,
                     n = n, error_var = error_var, with_err_gen = with_err_gen,
                     fact_vars = fact_vars,
                     data_str = "single", pow_param = pow_param, alpha = alpha,
                     pow_dist = pow_dist, pow_tail = pow_tail,
                     replicates = replicates, terms_vary = terms_vary,
                     raw_power = FALSE, lm_fit_mod = sim_data ~ I(trt_f - 1))

Results

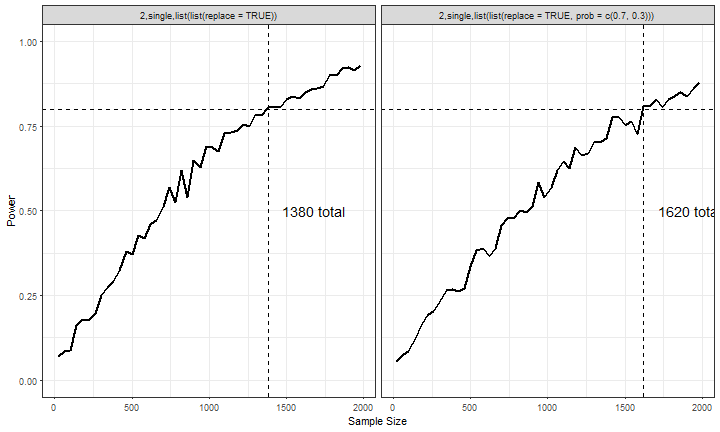

plot of chunk power_factor

Shiny Demo

  • Once the package is installed, can run the Shiny app locally.
run_shiny()
